GVWR

20,000 lb.

Weight

5020 lb

Length

(4' + 18')

Tilt deck width = 55.5"; Stationary width = 26.5"; 83" between fenders

Frame

5" x 5" x 5/16" Angle upper frame; 2" x 8" Tube lower frame

Unloaded Deck Height

25"

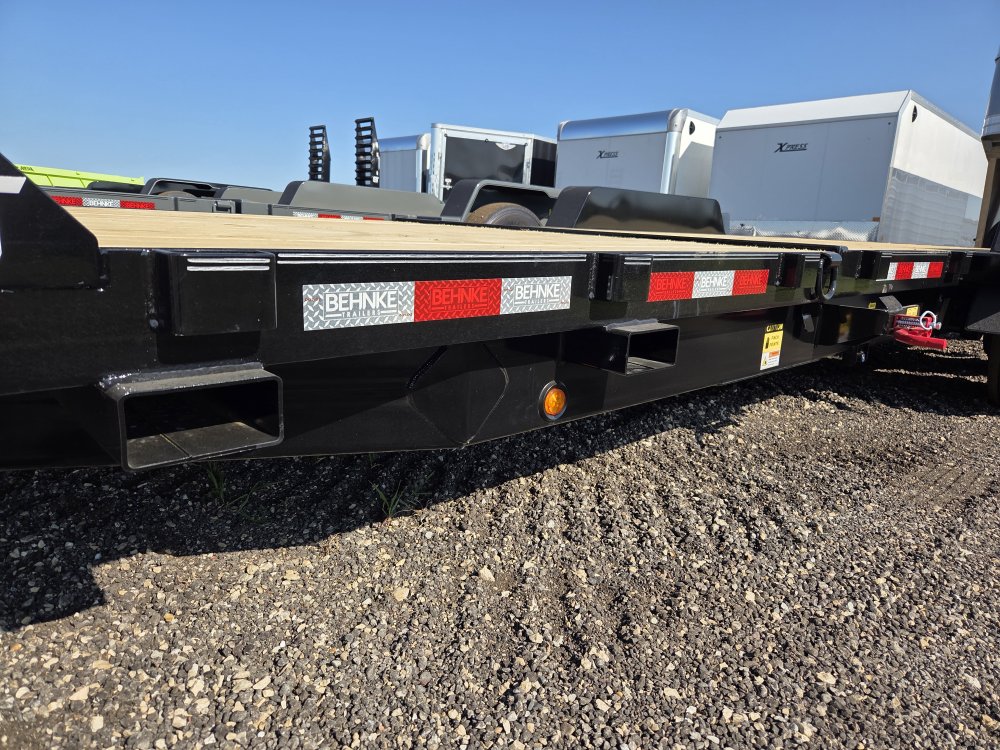

Side Rails

5 x 5 x 5/16 angle (flush floor)

Crossmembers

3" channels (12" ¢'s)

Fenders

HD Fully Welded 11 gauge

Jack

Single 12K dropleg

Hitch

2 5/16ʺ adj. coupler or pintle

Safety Chains

(2) 3/8" Gr. 70

Tie-Downs

Stake pockets and (4) D-rings

Storage

Chain tray in tongue

Axles

10K Dexter Torflex

Suspension

Torflex

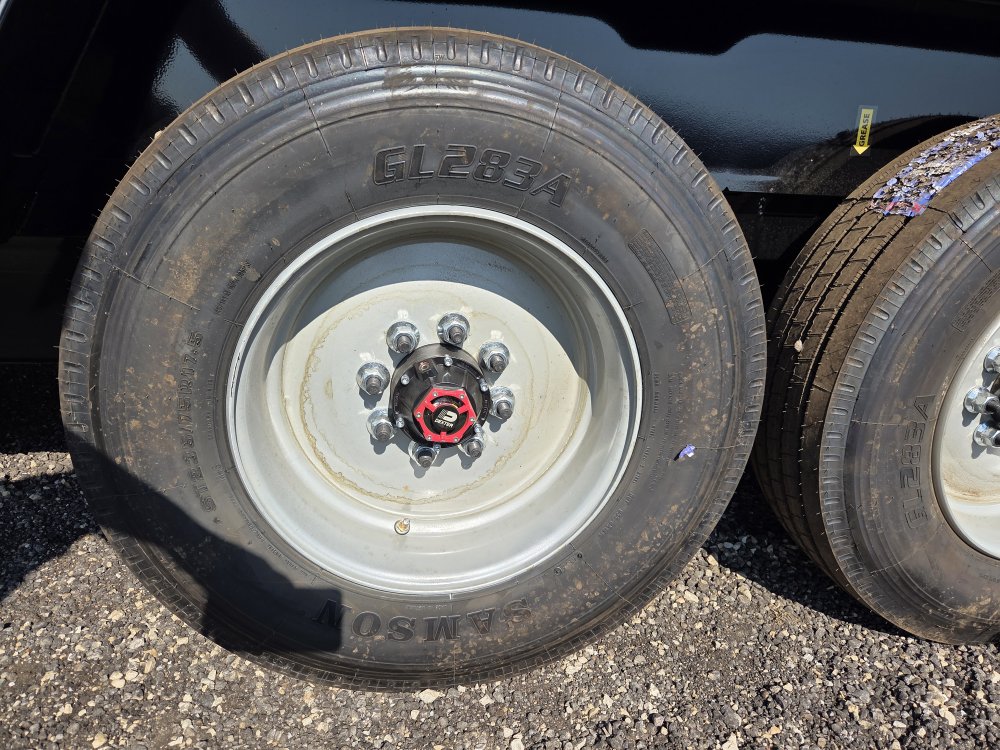

Tire and Wheel

235/75R-17.5 16 ply (6,005 lb. load rating) super single (10K or 12K)

Decking

1 1/2" No 1. Treated Pine

Lights

LED flush mount

Elect. Plug

RV plug

Finish and Paint

Bead blasted, acid washed, zinc rich primed, powder coated
